Introduction: The High Stakes of Compressor Stability
In the high-pressure, high-stakes world of oil and gas processing, centrifugal compressors are indispensable workhorses. They boost pressure in critical processes like gas injection, pipeline transportation, LNG production, refinery gas handling, and gas lift operations. However, these complex machines operate within strict aerodynamic boundaries. Venture beyond these limits, particularly into the surge region, and the consequences range from costly damage to catastrophic failure and significant production downtime. Effective surge control isn’t just an engineering nicety; it’s a fundamental requirement for asset integrity, operational safety, and economic viability. This article delves deep into the surge phenomenon, explores traditional and cutting-edge control strategies, and outlines best practices for integrated anti-surge system design.

Understanding the Surge Phenomenon: An Aerodynamic Instability

Surge is a dynamic instability occurring in dynamic compressors (centrifugal and axial) when the flow through the machine becomes insufficient for the pressure it’s trying to generate. It’s characterized by a complete breakdown of stable flow, manifesting as violent oscillations.

1. The Aerodynamic Mechanism:
   • Operating Point: A compressor operates stably where its performance curve (Head vs. Flow) intersects with the system resistance curve (backpressure).
   • Reduced Flow: If system resistance increases (e.g., a valve closes downstream) or speed decreases, the operating point moves left on the curve.
   • Stall Inception: As flow reduces, flow separation begins to occur within the impeller or diffuser passages (stall).
   • Flow Reversal: At the surge point (the extreme left of the curve), the pressure generated by the compressor momentarily exceeds the system pressure. This pressure differential becomes too great for the reduced flow to overcome, causing an instantaneous reversal of flow back through the compressor.
   • Pressure Collapse & Recovery: The reversed flow rapidly discharges the system pressure downstream. Once the pressure equalizes, forward flow resumes, pressure builds again, and the cycle repeats if the operating condition remains unchanged.
2. Characteristics of Surge:
   • Violent Oscillations: Rapid, large-amplitude oscillations in flow (often reversing), discharge pressure, and drive power.
   • Acoustic Signature: Loud, distinctive low-frequency pulsing or “whooping” sounds.
   • Mechanical Vibration: Severe mechanical vibrations transmitted throughout the compressor, piping, and foundation due to the rapid flow reversals and aerodynamic forces.

Dire Consequences: Why Surge Must Be Prevented at All Costs

The destructive power of surge cannot be overstated. Consequences include:

1. Severe Mechanical Damage:
   • Thrust Bearings: Rapid flow reversals subject thrust bearings to extreme alternating loads beyond design limits, leading to rapid wear or catastrophic failure.
   • Radial Bearings: High vibration levels damage radial bearings.
   • Seals: Dry gas seals (DGS) and labyrinth seals can suffer catastrophic damage due to contact during violent vibration and flow reversal. Seal failure leads to gas leaks and potential safety hazards.
   • Impellers & Diffusers: High cyclic stresses can cause fatigue cracking in impellers, blades, and diffuser vanes. Blade resonance during surge can lead to breakage.
   • Couplings & Shafts: Torsional vibrations and high thrust loads damage couplings and potentially bend the rotor shaft.
   • Piping & Supports: High-pressure pulsations and mechanical vibrations stress piping, welds, and support structures, risking leaks or rupture.
2. Operational & Economic Impact:
   • Production Downtime: Compressor trips or failures necessitate shutdowns, halting production processes. Restarting complex processes is time-consuming and costly.
   • High Repair Costs: Replacing damaged bearings, seals, impellers, or rotors is extremely expensive. Downtime costs often far exceed repair parts.
   • Reduced Efficiency & Capacity: Operating near the surge limit (with margin) or recovering from surge events reduces overall plant efficiency and throughput.
   • Safety Risks: Seal failure releases flammable or toxic gases. Mechanical disintegration poses severe hazards to personnel. Fire or explosion is a real possibility.

Traditional Anti-Surge Control Methods: The Foundation

The core principle of anti-surge control is simple: Prevent the operating point from crossing the surge limit line (SLL). This is achieved by rapidly opening a recycle valve (anti-surge valve – ASV) to increase flow through the compressor when the operating point approaches the SLL.

1. The Anti-Surge Valve (ASV) & Bypass Line:
   • A specially designed, fast-acting valve installed in a bypass line connecting the compressor discharge back to the suction (or an intermediate point). Opening this valve reduces system resistance, increasing compressor flow.
2. Surge Limit Line (SLL) Definition:
   • Traditionally, the SLL is a fixed line plotted on a compressor map (Head vs. Flow or Pressure Ratio vs. Flow). It represents the locus of surge points determined during shop testing at various speeds. A safety margin (Surge Control Line – SCL) is set parallel to the SLL.
3. Basic Surge Controller (PID-based):
   • Measurement: Key parameters are measured: Suction Pressure (P1), Discharge Pressure (P2), Suction Temperature (T1), and Flow (F). Differential Pressure (dP) across a flow element is often used.
   • Surge Parameter Calculation: A “surge parameter” proportional to the operating point’s proximity to the SCL is calculated. Common parameters are:
     • (H / H_surge) - 1 (Head Ratio)
     • (dP / P1) / (dP / P1)_surge (Normalized Flow Ratio)
     • (F / F_surge) (Simplified Flow Ratio)
   • Control Algorithm: A Proportional-Integral-Derivative (PID) controller acts on the “surge margin” (distance from SCL). If the margin decreases below zero (operating point crosses SCL), the controller output rapidly increases.
   • Valve Action: The controller output drives the ASV towards open. The speed of opening is critical to arrest the surge onset quickly.
   • Recovery: Once the operating point moves safely away from the SCL (surge margin positive), the controller slowly closes the ASV to minimize energy waste while maintaining stability.

Limitations of Traditional PID Control:

While effective for many applications, traditional PID controllers have significant drawbacks:

1. Fixed SCL: Assumes the SLL is constant. In reality, SLL shifts with gas composition, inlet conditions (P1, T1), fouling, and speed variations. A fixed SCL with a large safety margin wastes energy; one too close risks surge if the SLL moves unexpectedly.
2. Fixed Controller Gains (P, I, D): Tuned for one operating point, often becoming sluggish (slow to open) or aggressive (oscillatory) at other points. This compromises both protection and efficiency.
3. Limited Predictive Capability: Reacts after the operating point nears the SCL, rather than predicting and preventing the approach. Response time limitations can still allow incipient surge.
4. Handling Complex Configurations: Challenging for compressors with side streams, multiple sections, or variable geometry.

Modern Advanced Anti-Surge Algorithms: Intelligence and Adaptability

To overcome the limitations of fixed PID controllers, sophisticated algorithms have emerged:

1. Adaptive Gain Scheduling:
   • Concept: Dynamically adjusts the PID controller gains (P, I, D) based on the current operating point (e.g., speed, flow, head).
   • Benefit: Maintains optimal controller responsiveness (fast, stable, non-oscillatory) across the entire operating range. Provides aggressive opening near surge and smooth closing away from surge. Improves stability and efficiency.
   • Implementation: Uses pre-configured gain maps or real-time calculations based on operating parameters.
2. Adaptive Surge Control Line (ASCL):
   • Concept: Dynamically adjusts the Surge Control Line (SCL) position based on real-time measurements and operating conditions. Moves the SCL closer to the actual surge limit when conditions allow (reducing recycle), and moves it further away when conditions worsen (increasing protection).
   • Methods:
     • Model-Based: Uses a real-time aerodynamic model of the compressor (simplified) to estimate the current surge margin and adjust the SCL.
     • Performance-Based: Monitors parameters like efficiency, vibration trends, or acoustic signatures that correlate with proximity to surge. Subtly moves the SCL if precursors are detected.
     • Statistical Learning: Analyzes historical operating data near surge events to learn how the SLL shifts under different conditions.
   • Benefit: Maximizes operational efficiency by minimizing unnecessary recycle flow while maintaining robust protection against the actual surge limit, not a fixed approximation.
3. Model Predictive Control (MPC):
   • Concept: Uses a dynamic model of the entire compressor system (compressor, piping, valves, process) to predict future operating points over a finite horizon (seconds ahead). Optimizes ASV movements to prevent the predicted operating point from violating constraints (like crossing the SCL), while also considering other process objectives (e.g., minimizing recycle, maintaining discharge pressure).
   • Benefit: Truly predictive and proactive. Handles complex interactions and multiple constraints elegantly. Can optimize overall process performance, not just surge avoidance. Excellent for multivariable control (e.g., coordinating ASV with speed or guide vanes).
   • Implementation: Computationally intensive, requires a good system model and robust hardware.
4. Nonlinear Control Techniques (e.g., Lyapunov-based, Feedback Linearization):
   • Concept: Treats the compressor dynamics explicitly as nonlinear. Designs control laws based on nonlinear stability theory to guarantee stability within a defined region around the operating point, inherently rejecting disturbances pushing it towards surge.
   • Benefit: Theoretically rigorous stability guarantees. Can handle large disturbances effectively.
   • Implementation: Often mathematically complex, requires accurate nonlinear models. Gaining traction in research and advanced industrial applications.

Integrated Anti-Surge System Design: Best Practices

Implementing effective surge control requires a holistic system approach, not just an algorithm:

1. Robust Instrumentation & Redundancy:
   • Critical Measurements (P1, P2, T1, Flow): Use high-accuracy, fast-response transmitters. Redundancy (2oo3 voting logic is common for flow, pressure) is ESSENTIAL for safety and availability. A single instrument failure must not cause a false trip or prevent surge detection.
   • Vibration Monitoring: Integrate with machinery protection system (Bently Nevada, etc.) for surge detection and correlation.
   • Acoustic Monitoring: Surge-specific microphones can provide early warning.
   • Valve Position Feedback: Critical for the controller to know ASV position accurately.
2. High-Performance Anti-Surge Valve (ASV):
   • Fast Stroke Time: Must open from closed to fully open in < 1-2 seconds (often < 300ms for critical services). Requires high-capacity positioners and robust actuators (usually pneumatic).
   • Inherent Characteristics: Equal percentage trim is generally preferred for good controllability over the wide range of operation.
   • Sizing: Correct sizing is paramount. Undersized valves cannot pass enough flow to prevent surge. Oversized valves are difficult to control stably at small openings. Consider “Dual Valves” (large/small) for very wide operating ranges.
   • Fail-Safe Action: MUST fail open (FO) on loss of signal or power to ensure protection.
   • Materials & Design: Suited for the process gas, pressures, temperatures, and potential for erosion or corrosion.
3. Dedicated, Certified Controller Hardware:
   • PLC vs. DCS vs. Dedicated System: While PLCs/DCS can run basic PID, advanced algorithms (especially MPC) often require dedicated, high-performance hardware (e.g., specialized compressor control systems – CCC from vendors like Compressor Controls Corporation, Siemens, Woodward, GE, etc.). These offer:
     • Ultra-fast scan times (< 50ms).
     • Certified safety integrity levels (SIL 2/3).
     • Robust communication protocols (Modbus TCP, OPC UA).
     • Redundant processors, power supplies, I/O cards.
   • Safety Integrity Level (SIL): Determine the required SIL based on risk assessment (e.g., IEC 61511). Implement accordingly (redundant hardware, diagnostics, certified logic solvers).
4. Thorough Commissioning & Testing:
   • Loop Checks: Verify every instrument, cable, and valve action meticulously.
   • Controller Tuning: Perform open-loop and closed-loop tuning across the operating range. Use step tests and bump tests. For adaptive controllers, verify gain schedules or model performance.
   • Surge Testing (If Possible & Safe): Under controlled conditions during commissioning, carefully approach the surge limit to verify the SLL and controller response. This is high-risk and requires extreme caution and preparation.
   • Functional Safety Testing (SIL): Verify all safety instrumented functions (SIFs) related to surge protection meet the required SIL.
5. Operator Interface & Alarms:

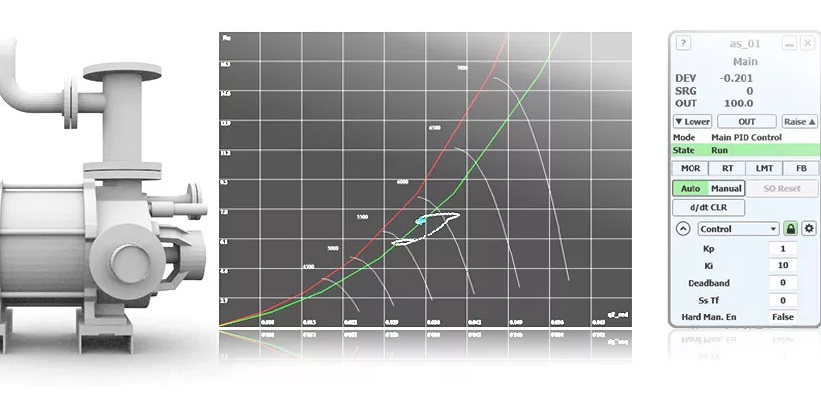

   • Clear Visualization: Real-time display of the compressor map showing operating point, SCL, SLL, surge margin, and ASV position.
   • Early Warning Alarms: Alarms for “Surge Margin Low” and “Surge Control Active” well before any danger.
   • Diagnostic Alarms: Alarms for instrument faults, valve issues, controller health.
   • Historical Trends: Essential for troubleshooting events and optimizing performance.
6. Integration with Process Control & Optimization:
   • Coordinate with Capacity Control: Anti-surge control (recycle) and capacity control (speed, inlet guide vanes, discharge throttling) must work together seamlessly to avoid fighting. Often handled by an integrated compressor controller.
   • Optimization Layer: Advanced systems can minimize recycle flow while maintaining surge margin and meeting process demands, optimizing energy consumption. MPC excels here.

The Future: Digitalization and Advanced Analytics

The future of surge control lies in leveraging data and digital technologies:

1. Digital Twins: High-fidelity dynamic models of the compressor system running in parallel with the physical asset. Used for real-time performance monitoring, predictive surge margin calculation, controller optimization, and “what-if” scenario testing.
2. Machine Learning (ML) & AI:
   • SLL Prediction: ML models trained on operational data can predict SLL shifts due to fouling or gas composition changes more accurately than traditional methods.
   • Anomaly Detection: Detect subtle precursors to surge or valve stiction using vibration, acoustic, or process data patterns.
   • Predictive Maintenance: Analyze surge events (frequency, severity) and valve cycling to predict maintenance needs for bearings, seals, and the ASV itself.
3. Cloud-Based Analytics: Centralized platforms aggregating data from multiple compressors fleet-wide for benchmarking, best practice sharing, and identifying optimization opportunities.

Conclusion: Protecting Critical Assets with Intelligence

Centrifugal compressor surge is a destructive force that demands a sophisticated, multi-layered defense. While traditional PID controllers and fixed surge lines provide a fundamental level of protection, modern adaptive algorithms like gain scheduling, adaptive surge control lines, and Model Predictive Control offer significant advantages in efficiency, stability, and robustness, especially in the face of changing operating conditions prevalent in the oil and gas industry.

However, the best algorithm is only as good as the system it controls. Success hinges on integrated design: redundant, high-fidelity instrumentation; a fast, reliable, and properly sized anti-surge valve; dedicated, high-performance controller hardware; meticulous commissioning; and clear operator interfaces. By embracing best practices in system design and leveraging advanced control strategies, operators can ensure their critical centrifugal compressors operate safely, reliably, and efficiently, far from the destructive brink of surge, maximizing asset life and minimizing costly downtime. The integration of digital twins and AI promises even greater levels of protection, prediction, and optimization in the years to come, making surge control a cornerstone of intelligent asset management in the oil and gas sector.

Table 1: Comparison of Anti-Surge Control Methods

FAQ Section:

• Q: How close can I safely operate to the surge limit?
  • A: The required surge margin (distance between SCL and SLL) depends on control system performance, instrumentation accuracy, and process stability. With basic PID, 10-15% margin is common. Advanced adaptive systems can safely operate with margins of 5-8% or even less dynamically. NEVER operate without a safety margin.
• Q: Can surge occur even with an anti-surge controller?
  • A: Yes, if the system response is too slow (slow valve, slow controller), instrumentation fails (without adequate redundancy), the controller is poorly tuned, or the SLL shifts drastically and unexpectedly beyond the system’s ability to adapt. Robust design minimizes this risk.
• Q: What’s the difference between surge control and surge prevention?
  • A: Surge control implies the system reacts once surge is imminent or incipient to arrest it. Surge prevention aims to keep the operating point always safely away from the surge limit. Advanced algorithms with predictive capabilities blur this line, aiming for prevention.
• Q: How often should anti-surge systems be tested?
  • A: Regular functional testing is crucial. This includes verifying instrument readings, valve stroking times, and controller logic response during planned shutdowns or online (if safe procedures exist). The frequency depends on criticality and SIL requirements (e.g., quarterly or annually). Partial stroke tests for the ASV might be done more frequently.
• Q: Is MPC worth the cost?
  • A: For large, critical compressors with variable operating conditions (common in oil & gas), where energy savings from reduced recycle are significant, or complex multivariable control is needed, MPC often provides a compelling ROI through increased efficiency, throughput, and reliability.
